Name: Metal Rotary Drum Screen
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Serie TTS
Price: 33,850.00 USD
Availability: InStock

Casa. > prodotti > Stone & Sand Washing Line >

Metal Rotary Drum Screen

Rotary Drum Screen

Luogo di origine:

Cina

Marca:

hengyang

Certificazione:

ISO9001

Numero di modello:

Serie TTS

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Colore:

Personalizza

Applicazione:

Lavaggio e separazione

Materiale:

acciaio

Capacità:

50-400t/h

OEM:

accettare

Termini di pagamento e di spedizione

Quantità di ordine minimo

Prezzo

12000-55700USD/set

Imballaggi particolari

Negociato

Tempi di consegna

15-20 giorni

Termini di pagamento

T/T

Capacità di alimentazione

300 set/mese

PRODOTTI RELATIVI

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Ottieni il miglior prezzo

Customize PU Spiral Sand Washing Machinery

Ottieni il miglior prezzo

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

Ottieni il miglior prezzo

Insutrial Use Rotary Screen Capacity 1-250t/h

Ottieni il miglior prezzo

Contattaci

Contatta ora

Descrizione del prodotto

Metal Rotary Drum Screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Principle

• Mobile Gold Washing Machines are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.

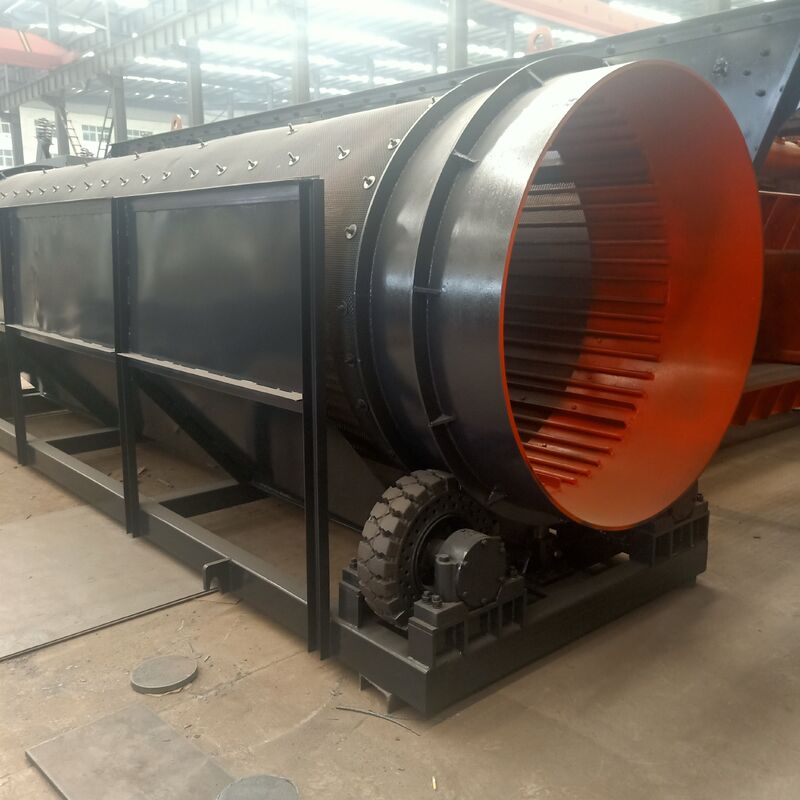

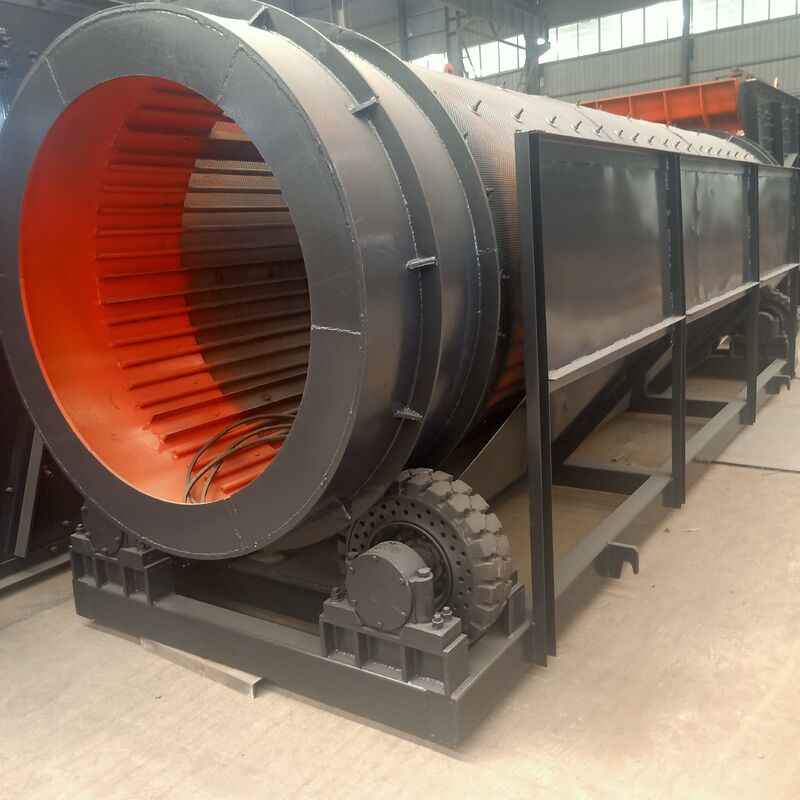

Metal Rotary Drum Screen 0

Technical Details

Model	Length range (m)	Screen segments	Mesh range (mm)	Power (kw)	Degree of tilt	Max Size (mm)	Drum speed (r/min)	Handling capacity (m3/h)	Reference weight (kg)
YTS600	2~4	1~3	5~35	2.2~3	7°	35	20	10	1.6
YTS800	2~4	1~3	5~40	2.2~5.5	7°	45	18	14	2.4
YTS1000	2~6	1~4	5~45	3~7.5	7°	60	16	16	4.2
YTS1200	2~8	1~4	5~50	4~11	7°	70	15	20	5.8
YTS1500	2~8	1~4	5~55	4~15	7°	80	12	32	7.2
YTS2000	2~9	1~4	5~60	5.5~18.5	7°	90	8	45	11

Tag：

Metal Rotary Drum Screen
