Name: Gold Cip Production Line
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Estrazione dell'oro
Price: 65,350.00 USD
Availability: InStock

Casa. > prodotti > Linea di lavorazione metallurgica >

Gold Cip Production Line

gold CIP processing plant

metallurgy gold extraction line

CIP gold recovery system

Luogo di origine:

Cina

Marca:

hengyang

Certificazione:

ISO9001

Numero di modello:

Estrazione dell'oro

Contattaci

Chiedi un preventivo

Dettagli del prodotto

OEM:

accettare

Condizione:

Nuovo

Garanzia:

12 mesi

Applicazione:

Roccia d'Oro

Utilizzo:

estrazione minerale

Termini di pagamento e di spedizione

Quantità di ordine minimo

Prezzo

35000-95700USD/set

Imballaggi particolari

Negociato

Tempi di consegna

25-40 giorni

Termini di pagamento

T/T

Capacità di alimentazione

30 set/mese

PRODOTTI RELATIVI

Gold Processing Leaching CIL Plant

Ottieni il miglior prezzo

Rock Gold Ore Gravity Separation Processing Plant

Ottieni il miglior prezzo

Gold Cip Production Line

Ottieni il miglior prezzo

Contattaci

Contatta ora

Descrizione del prodotto

We deliver more than just machinery; we provide a comprehensive, worry-free gold recovery solution from feed to final product. Based on the proven and efficient CIP (Carbon-in-Pulp) / CIL (Carbon-in-Leach) process, this 500-ton per day plant is engineered for large-scale operations, ensuring stable, high-yield, and effortless performance for our clients worldwide.

Working Principle: Maximizing Recovery Through Engineered Efficiency

The core of our plant lies in the "adsorption" and "elution" process. After fine grinding and cyanidation, the gold-bearing slurry flows through our optimized series of adsorption tanks. Here, activated carbon acts as the "gold hunter," efficiently capturing the gold-cyanide complex. The loaded carbon is then transferred to the elution and electro-winning system, where gold is stripped and deposited as high-purity sludge, ready for smelting into gold bars.

Recovery Rate: > 95%

Investment Return: 6-10months

A. Crushing and Screening
Raw ore is fed into a vibrating feeder and then crushed by a jaw crusher.

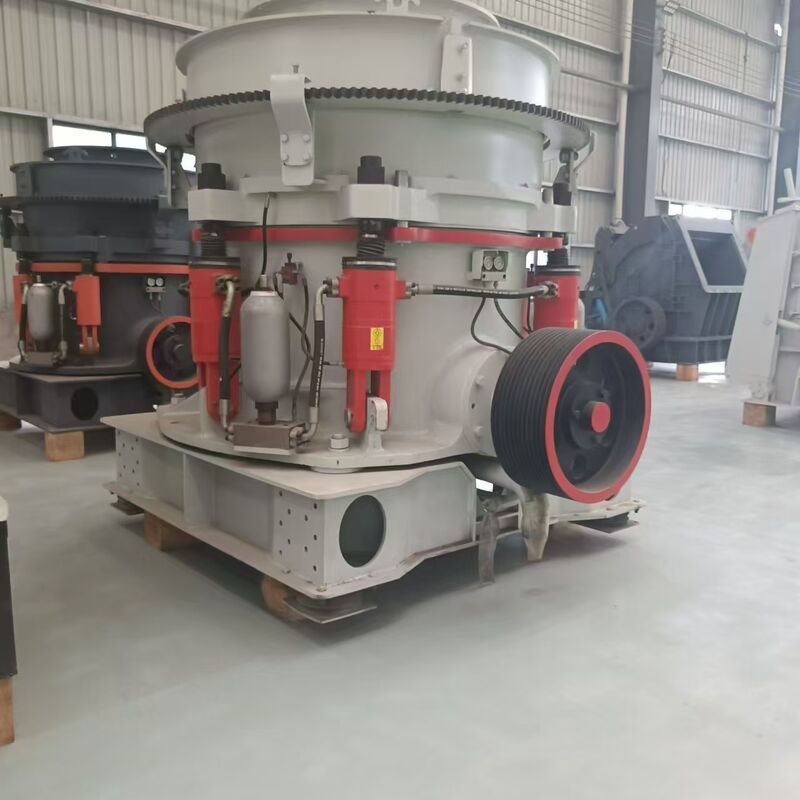

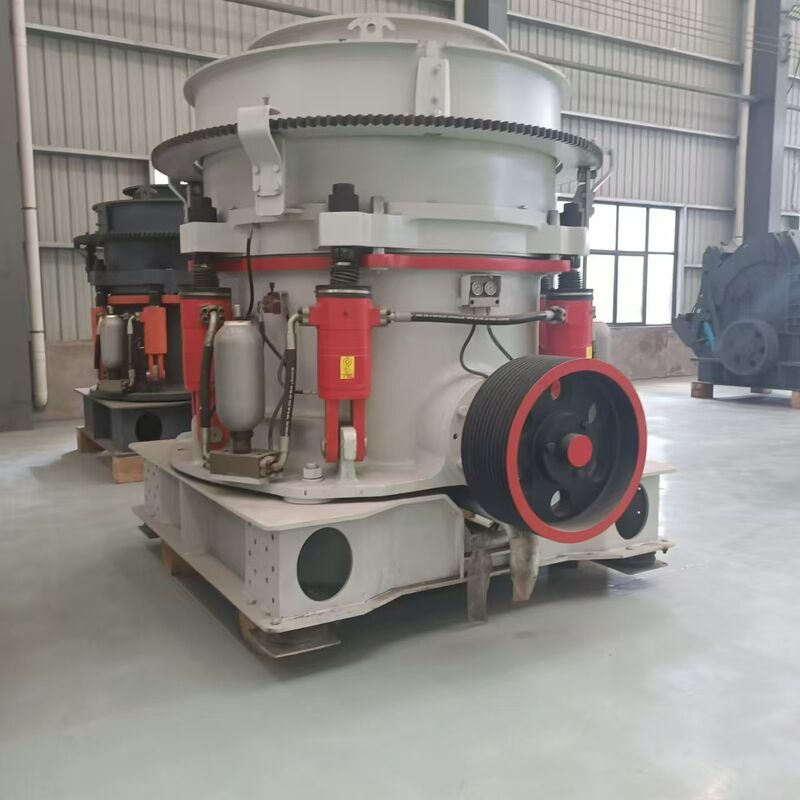

The crushed ore is further processed by cone crushers (coarse and fine crushing).
After crushing, the ore is screened, and oversize materials are returned to the crushers in a closed-circuit system.
B. Leaching and Adsorption
The slurry enters 8 leaching tanks. Sodium cyanide is added in the first tank, and activated carbon is added from the second to the eighth tank.
Gold is adsorbed by carbon through a counter-current flow system. Gold-loaded carbon is separated, cleaned, and sent to the desorption & electrolysis system.
C. Tailings Water Treatment
Tailings slurry is pumped to a filter press for solid-liquid separation.
* Solid tailings are discharged and transported to the yard
* Water is recycled back into the system
D. Gold-Loaded Carbon Treatment
Gold-loaded carbon is processed by desorption & electrolysis to produce gold dust.
The gold dust is smelted into gold bars in a melting furnace.
