Name: Indirect Electric Heating Rotary Kiln for High Temperature (1050°C) Thermal Treatment with Customizable Capacity
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC600
Price: 369000 USD
Availability: InStock

Casa. > prodotti > Pianta di trattamento dei rifiuti >

Indirect Electric Heating Rotary Kiln for High Temperature (1050°C) Thermal Treatment with Customizable Capacity

High Temperature Rotary Kiln

Indirect Electric Heating Kiln

Customizable Capacity Rotary Kiln

Luogo di origine:

Cina

Marca:

Hengyang

Certificazione:

ISO901

Numero di modello:

HC600

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Nome:

Forno a riscaldamento elettrico indiretto

Funzione:

Riscaldamento

Colore:

Grigio

Capacità:

Personalizza

Oem:

Accettare

Materiale principale:

SS310,Q235

Termini di pagamento e di spedizione

Quantità di ordine minimo

Prezzo

369000

Imballaggi particolari

Negociato

Tempi di consegna

25 giorni

Termini di pagamento

T/T

Capacità di alimentazione

PRODOTTI RELATIVI

video

Indirect Electric Heating Rotary Kiln for High Temperature (1050°C) Thermal Treatment with Customizable Capacity

Ottieni il miglior prezzo

Titanium slag for making titanium dioxide production using the sulfate method

Ottieni il miglior prezzo

Chloride Production of titanium dioxide

Ottieni il miglior prezzo

Sulfate Method TiO2 Production Plant 10-50t/d Capacity

Ottieni il miglior prezzo

Contattaci

86-371-56611369

Contatta ora

Descrizione del prodotto

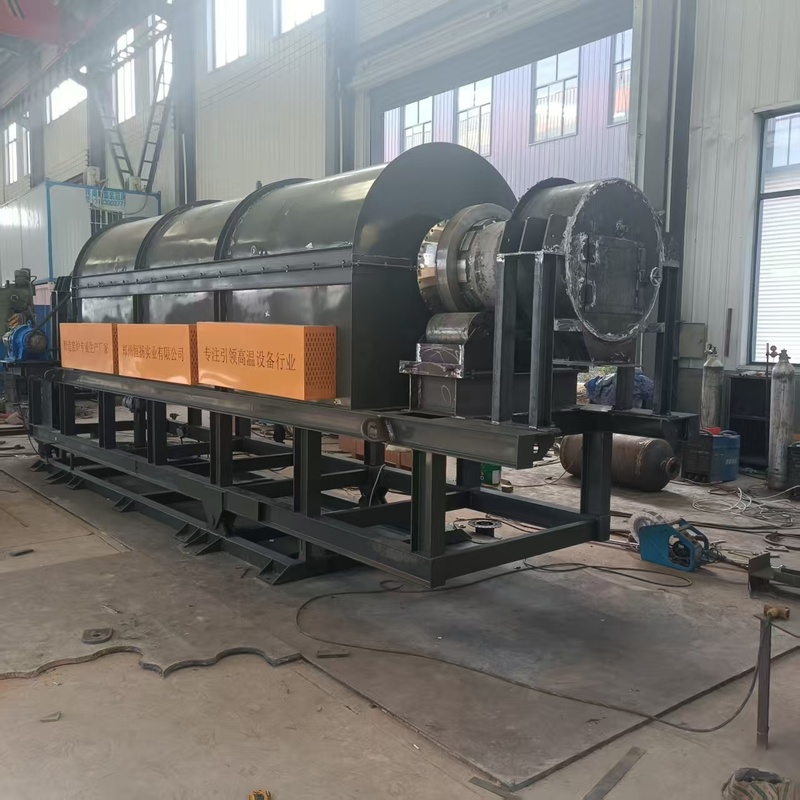

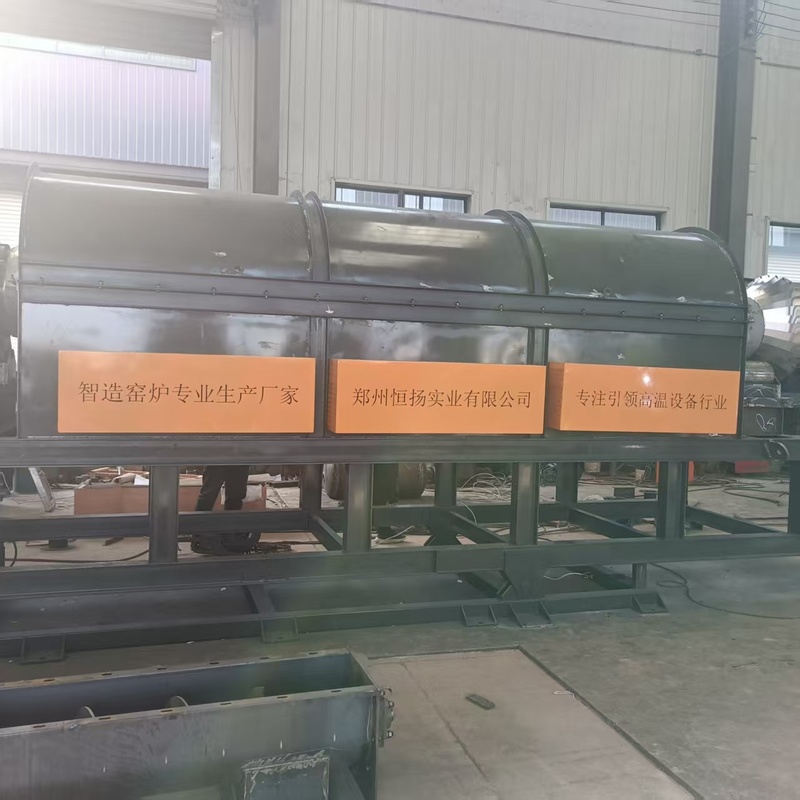

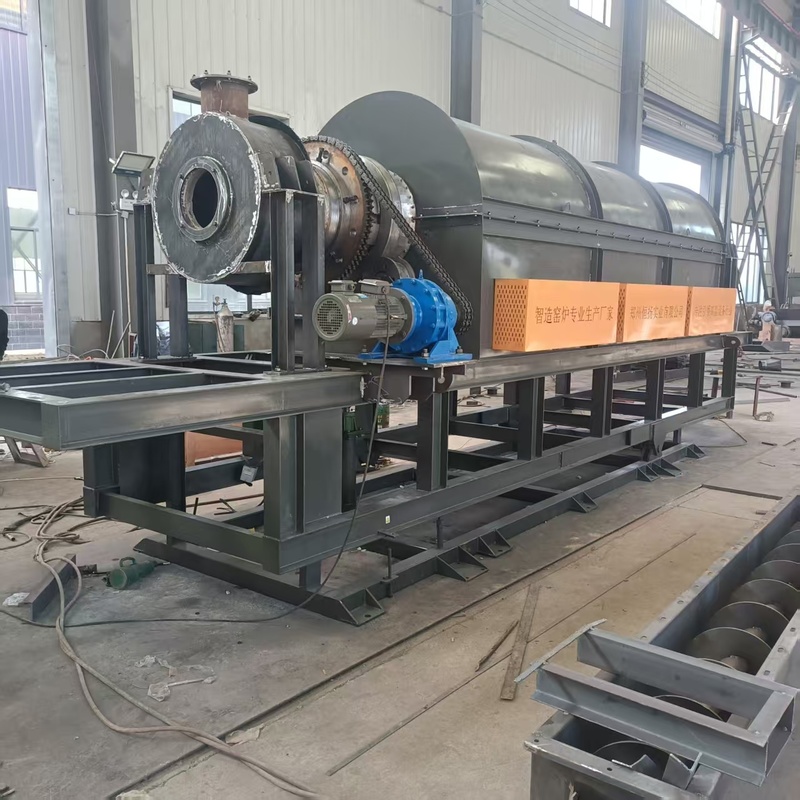

Indirect Electric Heating Rotary Kiln for New Materials Processing

Our electrically heated indirect rotary kilns provide a versatile thermal treatment solution for processes up to 1050°C. These kilns are particularly effective for beta spodumene to lithium sulphate conversion, supporting carbon footprint reduction and carbon capture initiatives where process CO2 emissions are a concern.

Our indirect rotary kilns accommodate diverse raw materials including alumina, bauxite, vanadium salts, and specialized applications like beta spodumene treatment in lithium processing. Available in sizes from 1m to 20m diameter and up to 90m length, we also offer natural gas heating options for lower-temperature applications where electric heating isn't viable.

Technical Specifications

Model	Diameter (cm)	Length of heating section (mm)	Capacity (t/h)	Temperature (℃)	Power (kw)	Weight (t)
Φ0.8×8m	800	6000	0.5-1.0	400-1200	5.5	8
Φ1.0×10m	1000	8000	0.8-1.2	-	7.5	9.5
Φ1.2×12m	1200	10000	1.2-1.6	-	11	14.5
Φ1.2×15m	1200	13000	1.5-1.9	-	15	15.5
Φ1.5×14m	1500	12000	2.0-2.7	-	15	27
Φ1.5×16m	1500	14000	2.8-3.0	-	18.5	27.5
Φ1.8×20m	1800	16000	3.2-3.6	-	22	38
Φ2×12m	2000	10000	3.0-3.5	-	18.5	45
Φ2×15m	2000	13000	3.2-3.8	-	22	50
Φ2.2×16m	2200	14000	3.5-4.2	-	30	62
Φ2.2×18m	2200	16000	3.5-4.5	-	30	65

Product Overview

The rotary kiln is a rotating cylindrical vessel designed for continuous drying, calcination, and sintering processes using hot gases. Our Hengyang rotary kiln and sponge iron rotary kiln feature advanced technology including variable speed drives, process automation, and instrumentation for optimal operational control. The design incorporates superior inlet and outlet sealing to minimize false air entry.

Applications

Cement and Aluminate Cement
Limestone & Lime sludge
Pet coke Calcination
Minerals (Bauxite, Iron Ore)
Sponge Iron
Dolomite, Kaolin, Mica
LECA Bauxite
Oil Proppant
Various other materials

Technical Parameters

Diameter: 1000mm to 4500mm

Length: 12000mm to 130,000mm

Heating Methods: Direct or indirect

Capacity: 200kg/h to 210t/h

Fuel Options: Coal, natural gas, heavy oil

Temperature Range: 900-1400°C

Materials: Carbon steel, Stainless steel

Thickness: 12mm to 100mm
